Call for pricing.

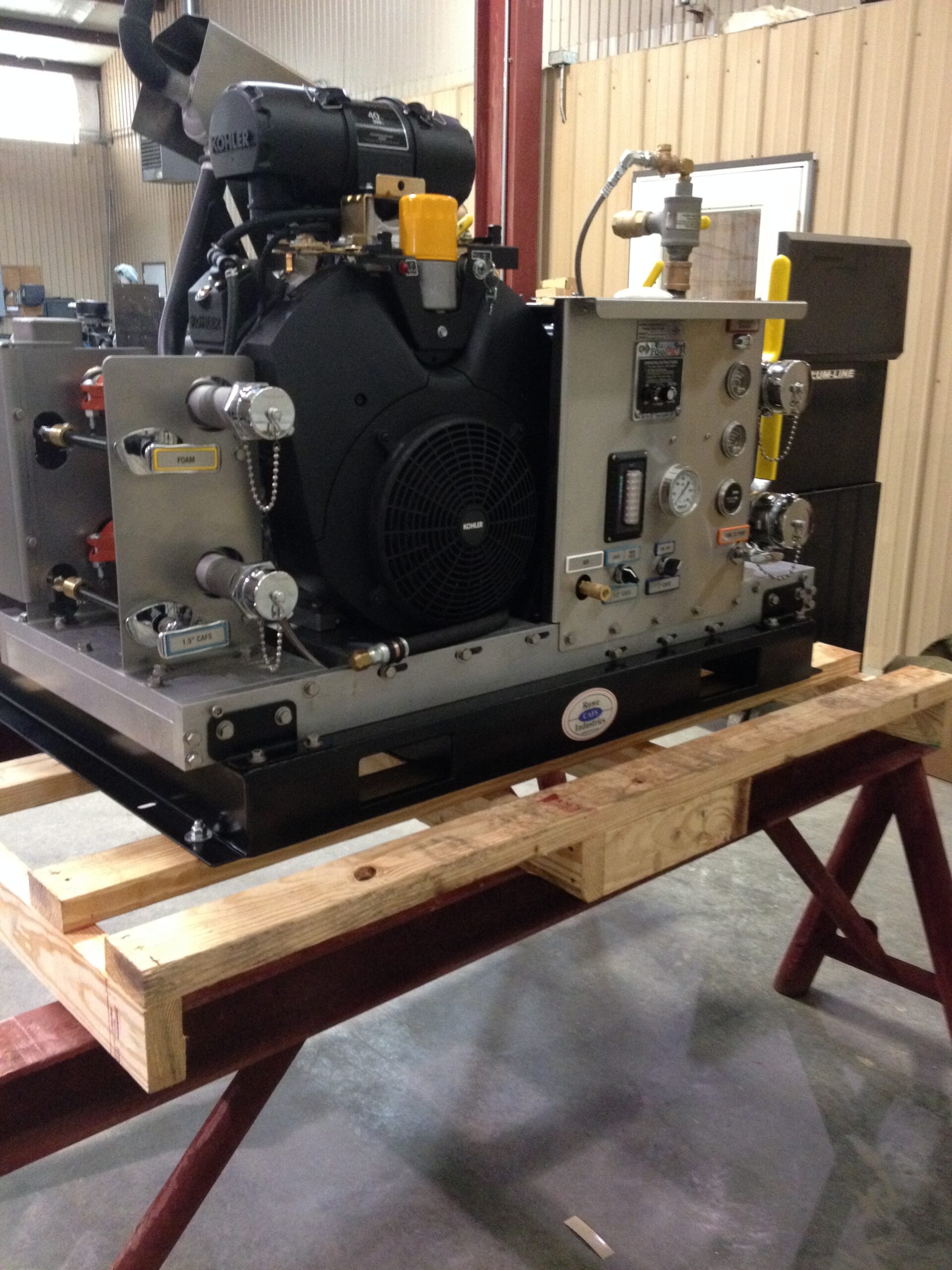

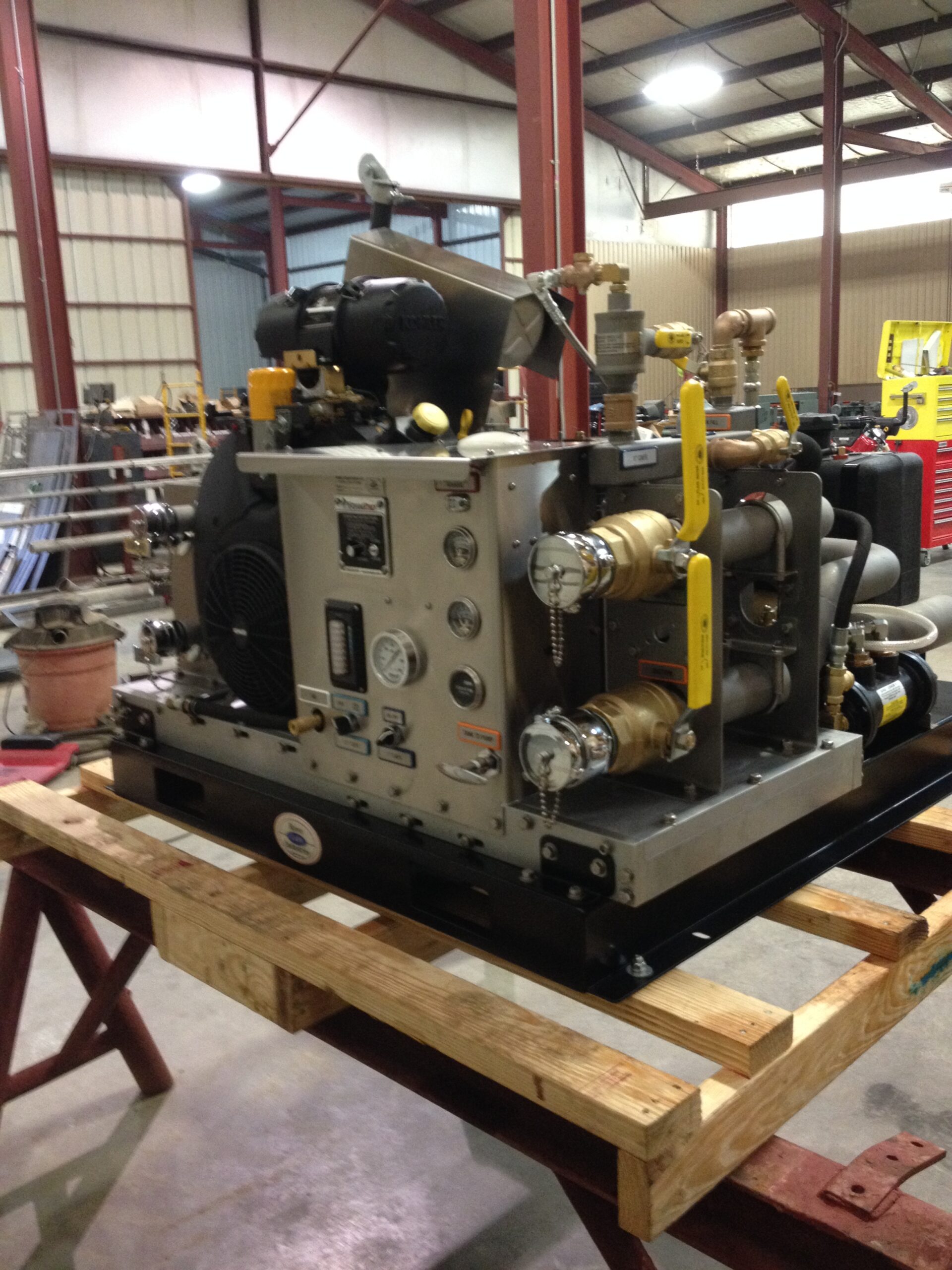

CAFS SC Gas
CAFS SC Gas
Engine, tank, proportioner, and hose reel all cover their manufactures warranty.
All other components guaranteed against defect in materials or workmanship for one (1) year from date of purchase.
All Equalizers® have lifetime warranty.
ROWE RPM2 pump warranty 7 years
| Model | CAFS SC Gas / Model M40 |
|---|---|
| Weight | 1,000 lbs (dry) |
| Frame | Powder coated black only |
| Pump | Rowe Model # RPM2 |
| Performance | 175 GPM @ 135 PSI; 200 GPM @ 100 PSI; 300 GPM @ 25 PSI |
| Engine | Kohler 40 HP Gasoline, Electric start, electronic fuel injection (EFI) |

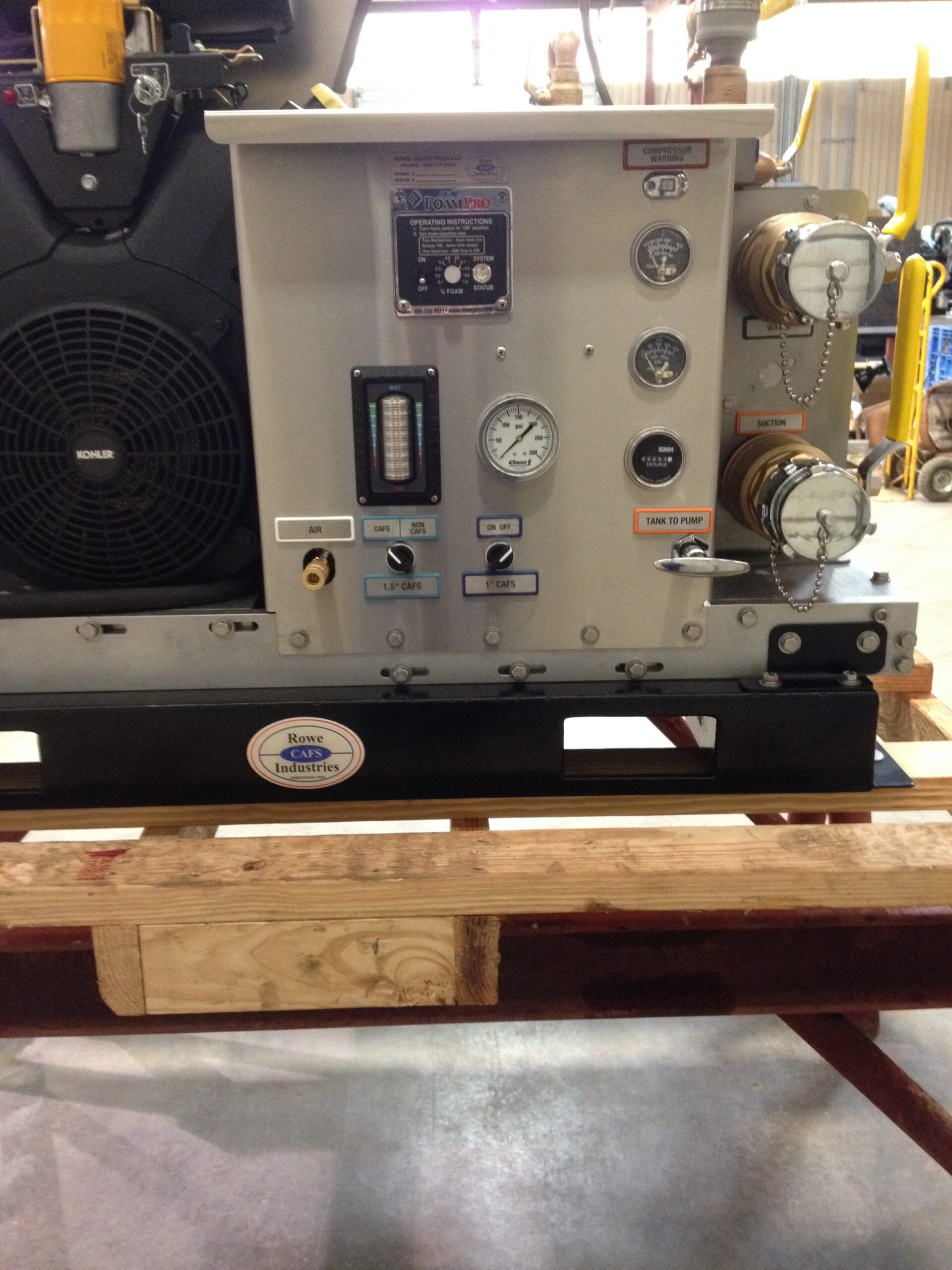

| Control Panel | (1) Water pressure gauge (1); Compressor temperature gauge (1); Compressor pressure gauge (1); Hour meter (1); Compressor warning lights (1); Aux. Air connector (1); CAFS/NON CAFS selector for 1" CAFS (1); CAFS/NON CAFS selector for 1.5" discharge (1). |
| Proportioner Controls | Standard Foam Pro controls |
| Compressor | Vanair Water-cooled 60 CFM Rotary Screw |
| Proportioner | Foam Pro 1601; (may upgrade to Foam Pro 2001 ) |
| Mixing / Balancing Device | Equalizer® FT-150 series fully adjustable from wet to dry foam with maximum flow capabilities for the 1½” discharge; Equalizer® NA40 series non-adjustable from wet to dry |
| Discharges | All stainless steel plumbing; 2½” Plain water (1); 1" Solution water (1); 1½” Solution water (1); 1½” CAFS discharge fully adjustable (1); 1” CAFS discharge fully adjustable (1); Manifold has a 1½” Male pipe outlet |
| Nozzles | F140FP 1⅛" Smooth bore (1); D75DP ¾" Smooth bore (1) |
| Primer | 12 volt electric primer |
| Hose Reel | Not included; (Available for additional cost) |
| Valves | Watts Brass quarter-turn ball valves |
| Tank Options | Not included; (Available for additional cost) |
| Dimensions | 48" (l) x 48" (w) |
